SUQ3-630G

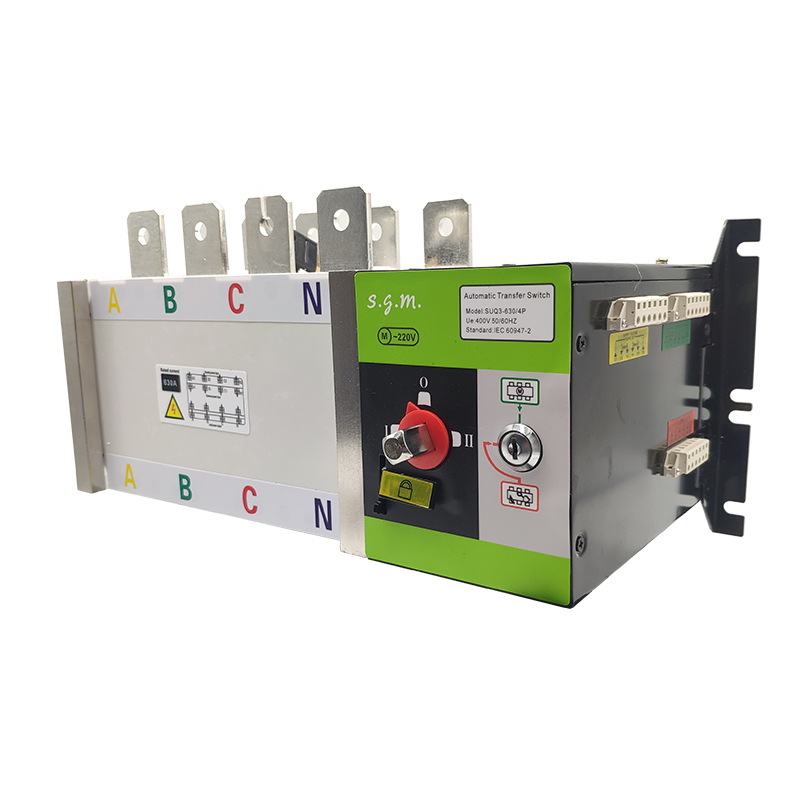

SUQ3 PC Class(ATSE), it gathers switch and logic control in one device to achieve the mechanical and electrical integration, with voltage detection, frequency detection, electrical and mechanical interlock etc.
Share:
Product details

Application

SUQ3 PC Class(ATSE), it gathers switch and logic control in one device to achieve the mechanical and electrical integration, with voltage detection, frequency detection, electrical and mechanical interlock etc. It can achieve automatic control, electric remote control and emergency manual control. The operation is done by using the logic control board and logic commands to manage the operation of synchronous electromechanical operation, synchronous electromechanical drive the switch spring to store energy, and instantaneous released acceleration mechanism will turn on sub-section power or circuit conversion fast. Through a clearly visible status to achieve safe isolation, it will greatly improve the electrical performance and mechanical properties. The switch is designed to use a metal shell to make it firm. Control part is metal shell, and the switch shell components are made of glass fiber unsaturated polyester resin to bring a strong dielectric function, protection function and reliable operation security.


Model No.&Meaning



Working Conditions

■Ambient temperature:-5℃~+40℃, and the daily average temperature shall not exceed+35℃.

■Atmospheric condition: relative humidity shall not exceed 50% at the ambient temperature of +40°℃,a higher humidity is allowable at a lower temperature, the average maximum relative humidity is 90% in the wettest month at a monthly average minimum temperature of +25°C, and special measures shall be taken for the condensation on surface of product due to temperature change.

■Installation altitude:≤2000m.

■Pollution class: class lll


Main Technical Specifications

■SUQ3 Series ATS 100~3200A Electrical and Mechanical Performance



Outline、Installation Size & Wiring Diagram







Wiring Diagram
