Automatic Transfer Switch Structure and features

□ Reliable mechanical interlock between the two circuit breakers and electrical interlock device. Eliminate the two devices closing completely at the same time.

□ SCM intelligent controller used to control the core hardware is simple and powerful, expansion of convenience, high reliability.

□ It has a short circuit, over load protection functions, over voltage, under voltage, loss phase automatic transfer function andintelligent alarm function.

□ Automatic switching external parameters can be set free.

□ Operation of Intelligent motor protection

□ The control circuit devices with fire, fire control center to a control signal into intelligent controller. Two sets circuit breaker will enter a stating of breaking .

□ There is a computer network interface for achieving remote control four remote telemetry functions

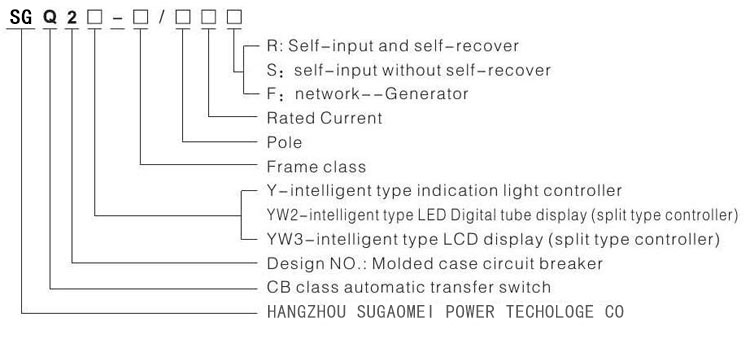

Product Model and Meaning

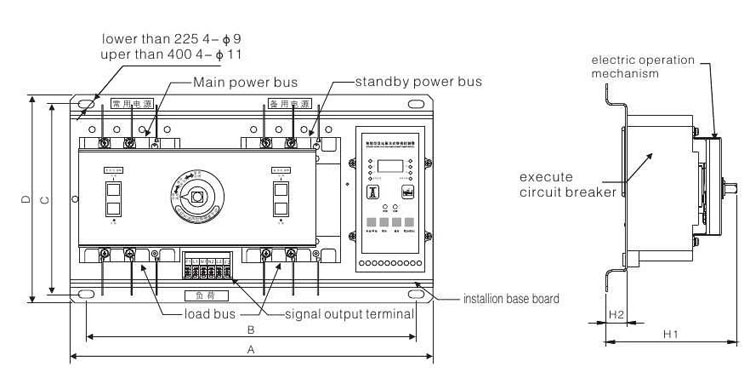

Appearance and installation dimensions

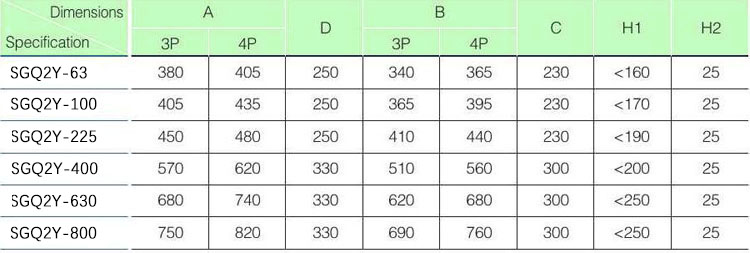

Installation and dimension

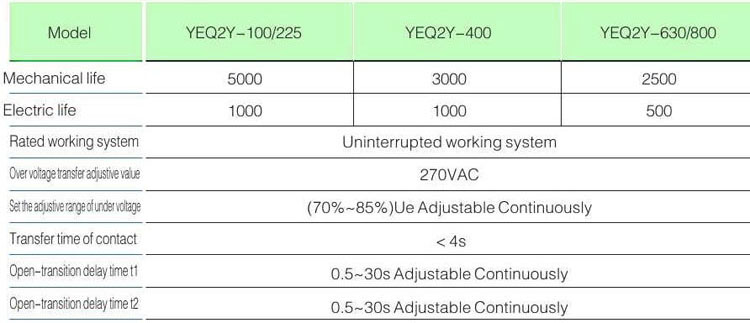

The main technical parameters

Main technical data
